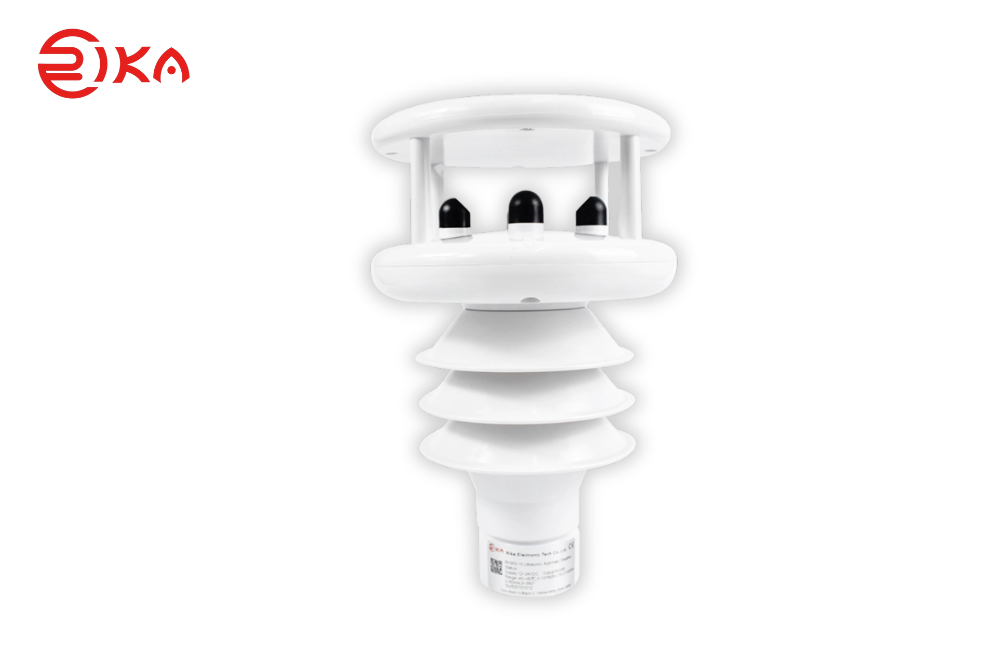

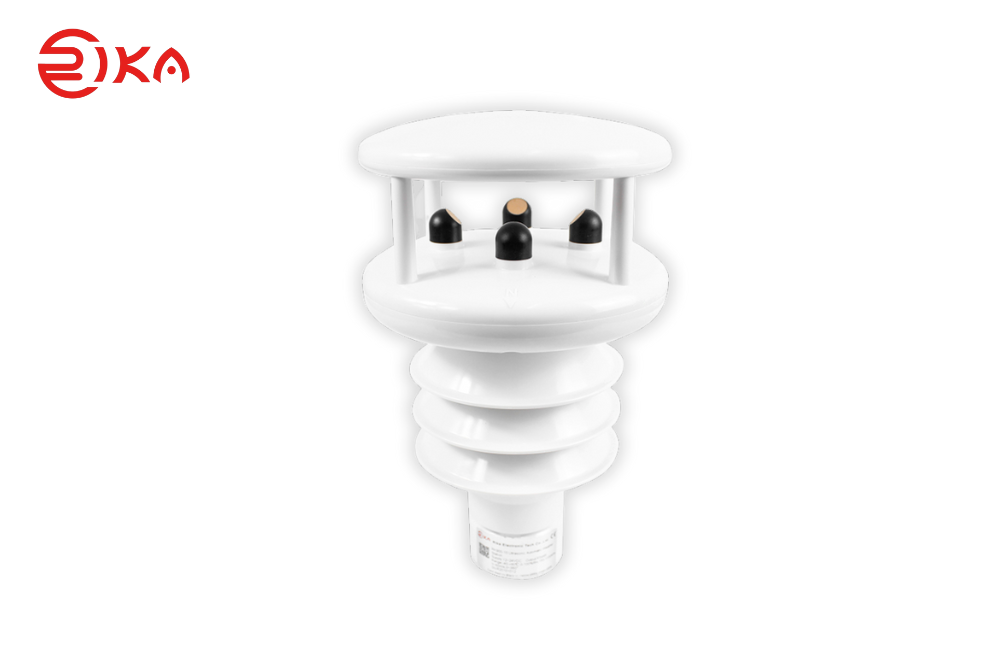

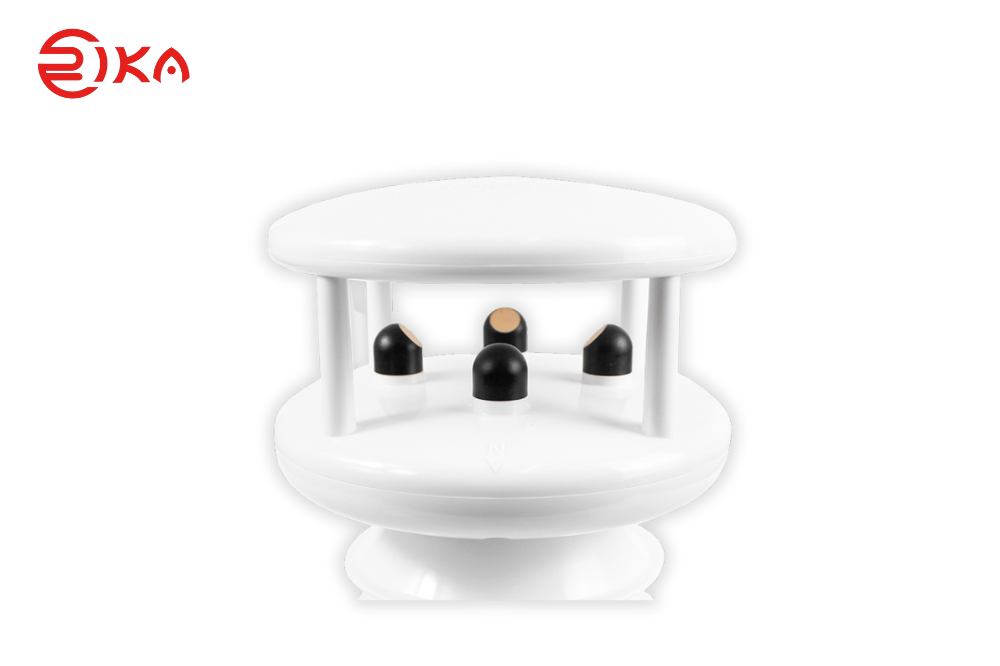

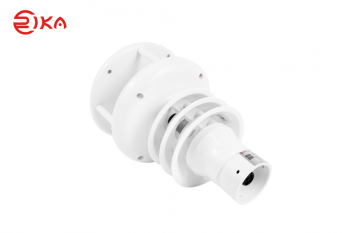

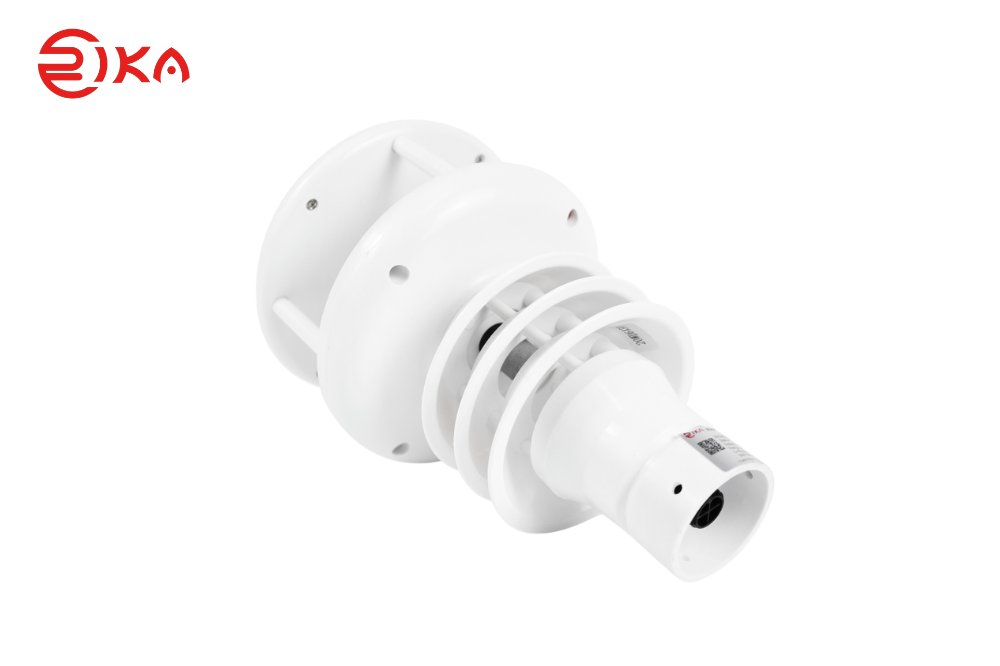

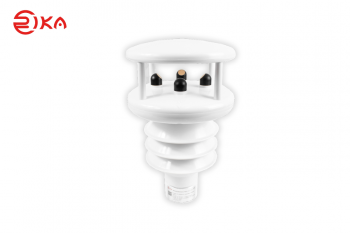

Ultrasonic Automatic Weather Sensor

ชื่อสินค้า : Ultrasonic Automatic Weather Sensor

รหัส : RK900-10

แบรนด์ : RIKA

ไฟล์เอกสาร :

Download

รายละเอียด :

PRODUCT DESCRIPTION

RK900-10 automatic weather instrument is simultaneously measure the atmospheric temperature, atmospheric humidity, air pressure, wind speed, wind direction, solar radiation, Illuminance, dust concentration and precipitation. Temperature, humidity and air pressure sensor is placed within the radiation shield,wind speed and direction of ultrasonic principle.24G radar detection on rainfall, which can quickly detect rainfall and rainfall intensity. Internal GPS global positioning module and electronic compass give a good indication of latitude and longitude and relative speed, which can calculate the real and virtual wind speed and direction, and is especially suitable for installation on motion vector, such as special vehicles or vessels, etc.Different functional modules and measurement parameters can be combined according to user needs.

- High accuracy

- Fast response

- Auto-heating function

- Radar rainfall measurement

- Easy to install

- RS485 output

SPECIFICATIONS

Measure item	Principle	Range	Resolution	Accuracy
Wind speed	Ultrasonic	0-60m/s	0.01m/s	±2%
Wind direction	Ultrasonic	0-360º	1°	＜3°
Atmospheric temperature	MEMS	-40-+80℃	0.1℃	±0.5℃
Atmospheric humidity	MEMS	0-100%RH	0.1%RH	±3%RH
Atmospheric pressure	MEMS	300-1100hPa	0.1hpa	±1hPa
Precipitation	Radar	0-200mm/hr.	0.1mm	±5%(@ wind speed≤5m/s)
Solar radiation	Silicon-cell	0-2000W/m2	0.1W/m2	±5%(@ vertical irradiation)
Illuminance	Silicon-cell	0-200000lux	0.1lux	±5%(@ vertical irradiation)
Dust concentration (PM2.5/PM10)	Photoelectric scattering	0-2000μg/m3	1μg/m3	±5%
Noise	MEMS	30-130dB	0.1dB	±3dB
Visibility	Forward scattering	20-10000m	1m	±15%
GPS①	Longitude, Latitude, Speed,Heading, Real wind speed
Electronic Compass②	Real wind direction
Inclination measurement	Horizontal X-axis direction，Horizontal Y-axis direction,Vertical Z-axis direction -90°-+90°（ optional）
Supply	12-24VDC
Output	RS485,RS232,SDI-12
Communication Protocol	Modbus-rtu(default),NMEA-0183,SDI-12
Data update cycle	1s(default),other optional
Power consumption	<3W,auto-heating power:6W
Operating temperature	-40-+80℃
EMC	EN61000-6-3, EN61000-3-3 EN61000-3-2, EN61000-6-1
IP Rating	IP66
Main material	ASA, Aluminum alloy base(optional)

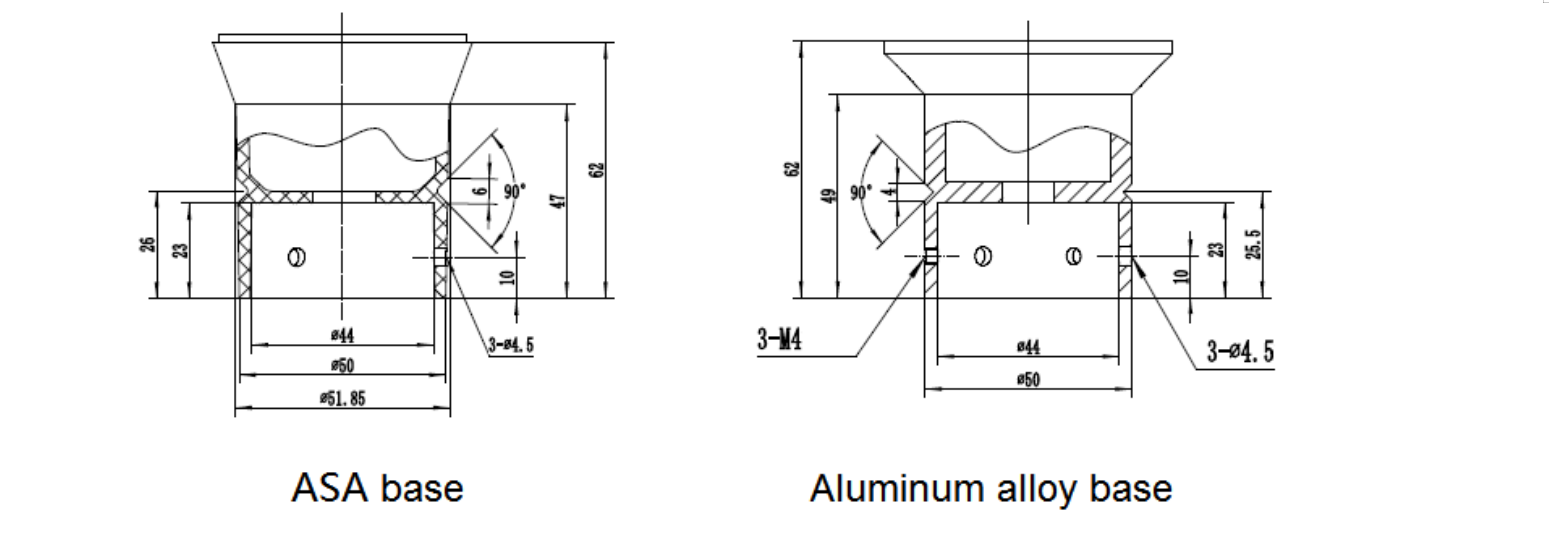

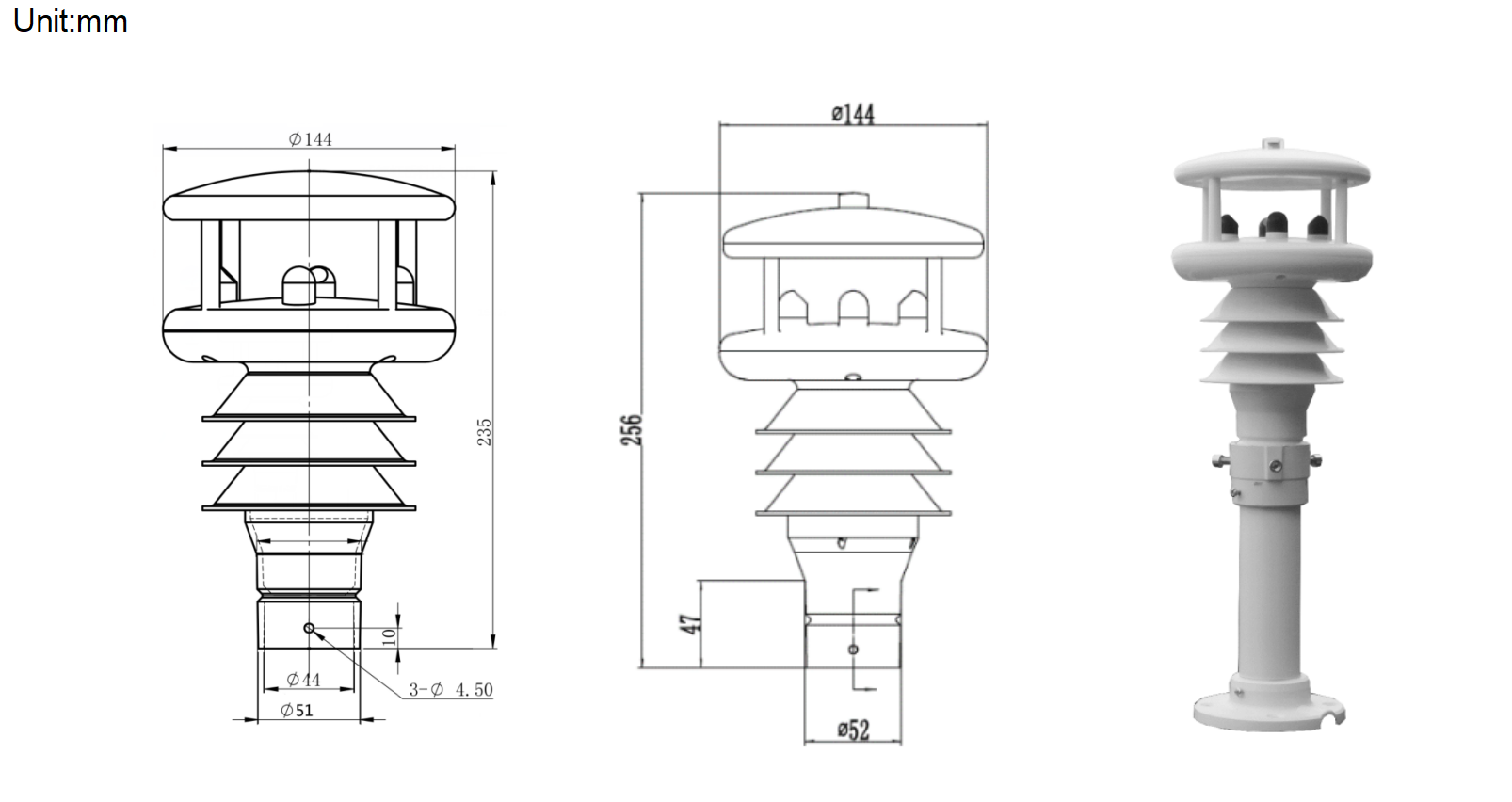

DIMENSION

RK900-10 Ultrasonic Automatic Weather Sensor 14

RK900-10 Ultrasonic Automatic Weather Sensor 15
