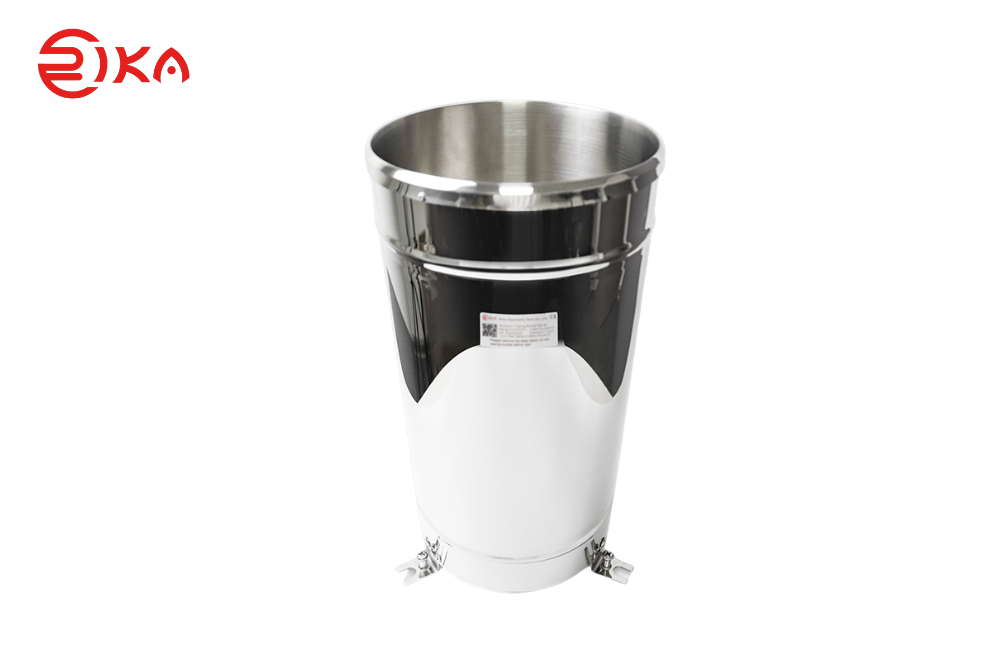

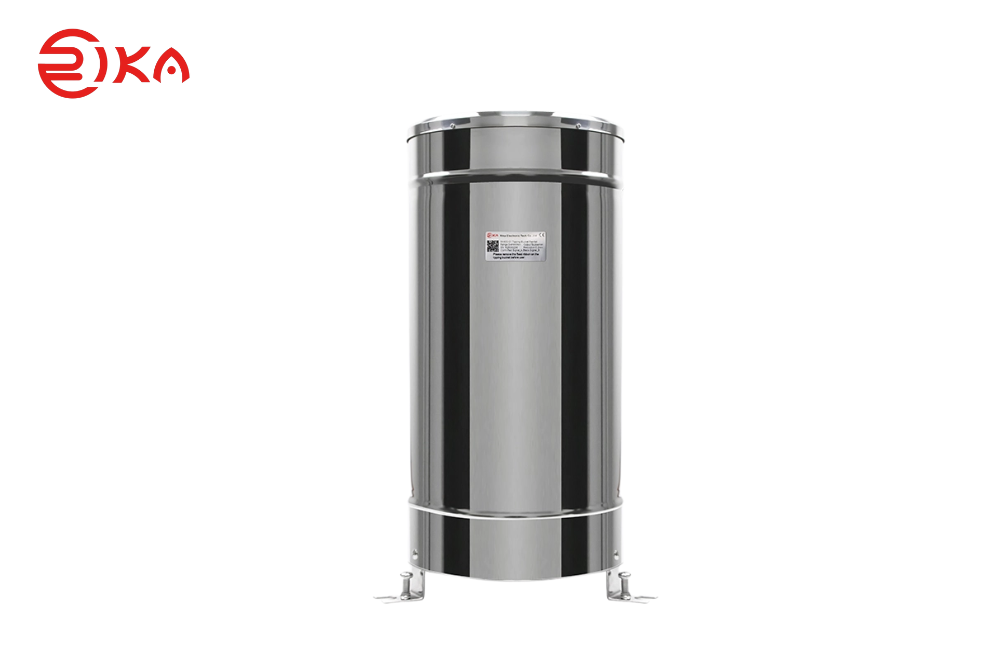

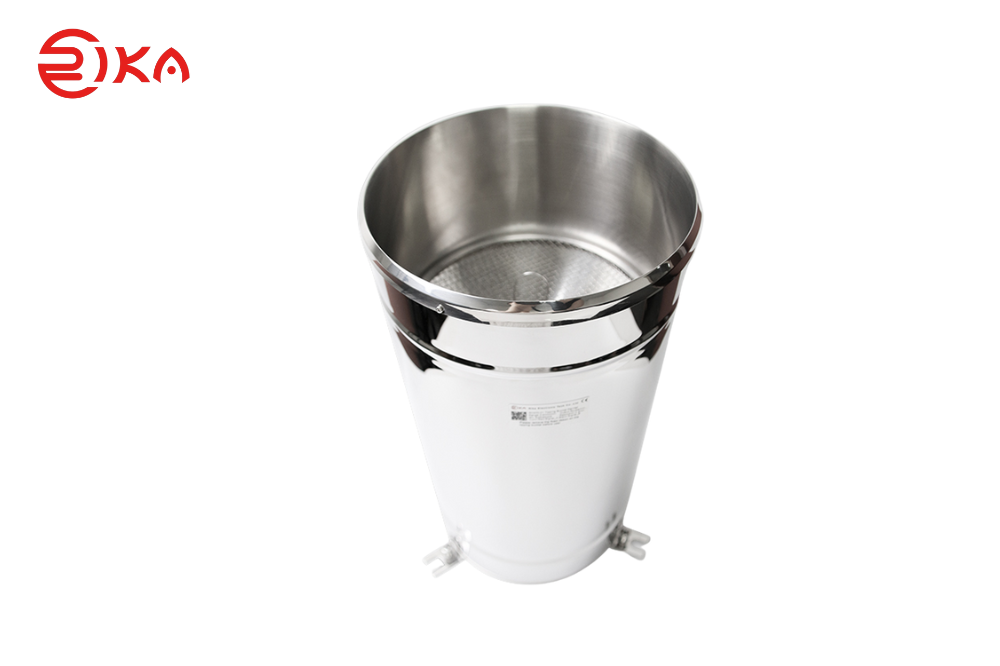

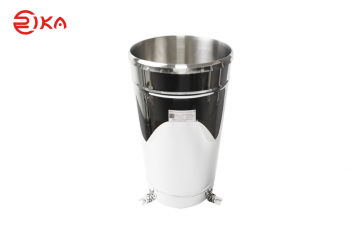

Rain Gauge

ชื่อสินค้า : Rain Gauge

รหัส : RK400-01

แบรนด์ : RIKA

ไฟล์เอกสาร :

Download

รายละเอียด :

PRODUCT DESCRIPTION

The RK400-01 Tipping Bucket Rainfall Sensor is an instrument for testing rainfall in the nature. In order to meet the requirement of information transmission, processing, recording and display, the amount of rainfall is converted to pulse output. It can be widely used in weather stations, hydrometric stations, agriculture & forestry, defense & field monitoring stations. It can provide the original data for flood-prevention, water-supply system, and reservoir water management in plant.

SPECIFICATIONS

ltem	Technical Specification
Rainfall collector	φ200mm,40-45°
Measured rainfall intensity	Max:4mm/min
Allow rainfall intensity	Max:10mm/min
Resolution	0.2mm
Accuracy(2mm/min)	±4%(Indoor static test,rain intensity of 2mm/min)
Maximum load voltage	30VDC(pulse output)
Maximum load current	20mA(pulse output)
Output	Reed switch pulses,RS485(12-24VDC supply)
Operating temperature(no freeze)	0-70℃
Main material	Collector:304SS,tipping bucket:ABS
Tipping bucket	Single

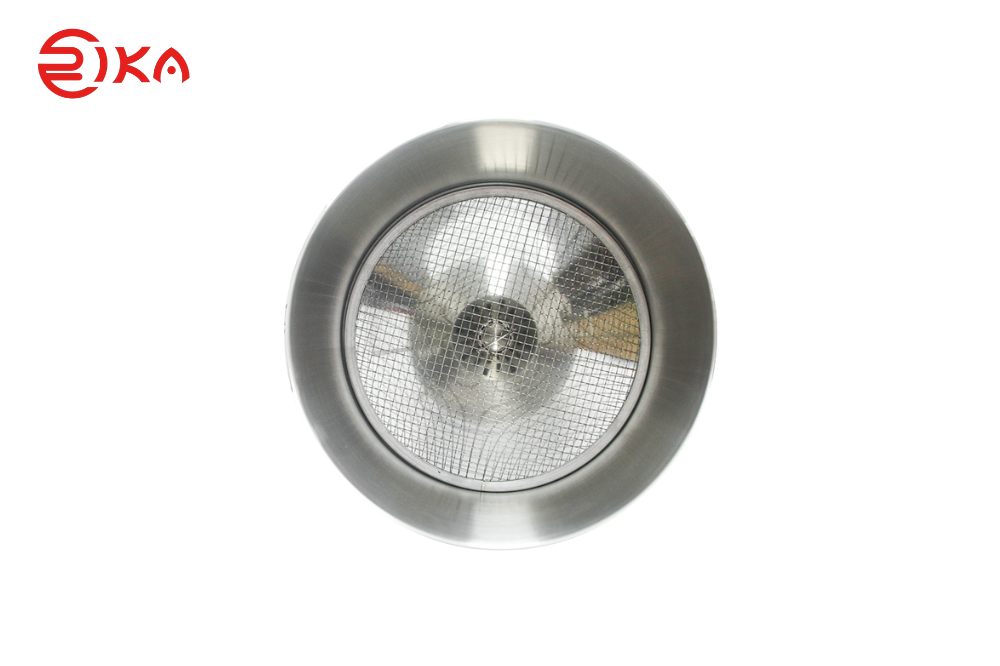

Collector filter	Removable filter(prevent leaves and sundries)
Bird spikes	Optional
Heating(optional)	200W@220V
Weight(unpacked)	3.5kg

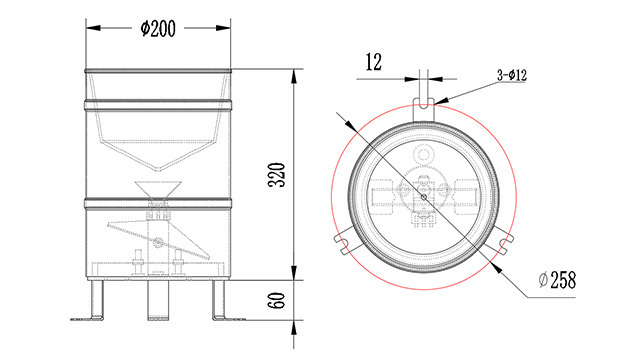

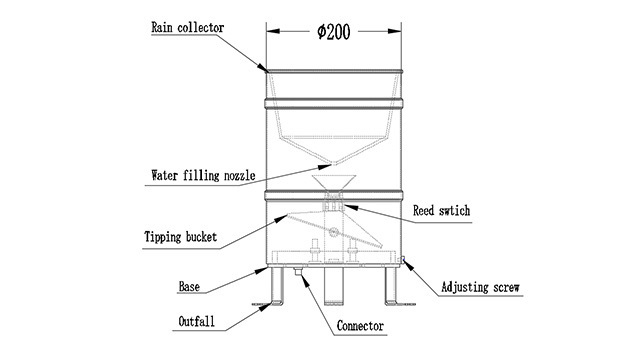

WORKING PROCESS & DIMENSION

RK400-01 Metal Tipping Bucket Rainfall Sensor Rain Gauge 15

Rainfall is captured in the 200mm diameter collector funnel and is directed through a delivery pipe to fill a divided ABS injection molded tipping bucket device.The bucket is pivoted through its center and has a preset calibration to tip for 0.2 mm of rainfall. When the bucket is “full”, it pivots and empties - this action magnetically closes and opens a reed switch, sending a pulse signal to the data logger or electronic counter. Through this tipping “seesaw” action, the other side of the bucket is aligned to receive the flow from the delivery pipe. This recording and tipping cycle continues with rainfall.

RK400-01 Metal Tipping Bucket Rainfall Sensor Rain Gauge 16
