PRODUCT DESCRIPTION

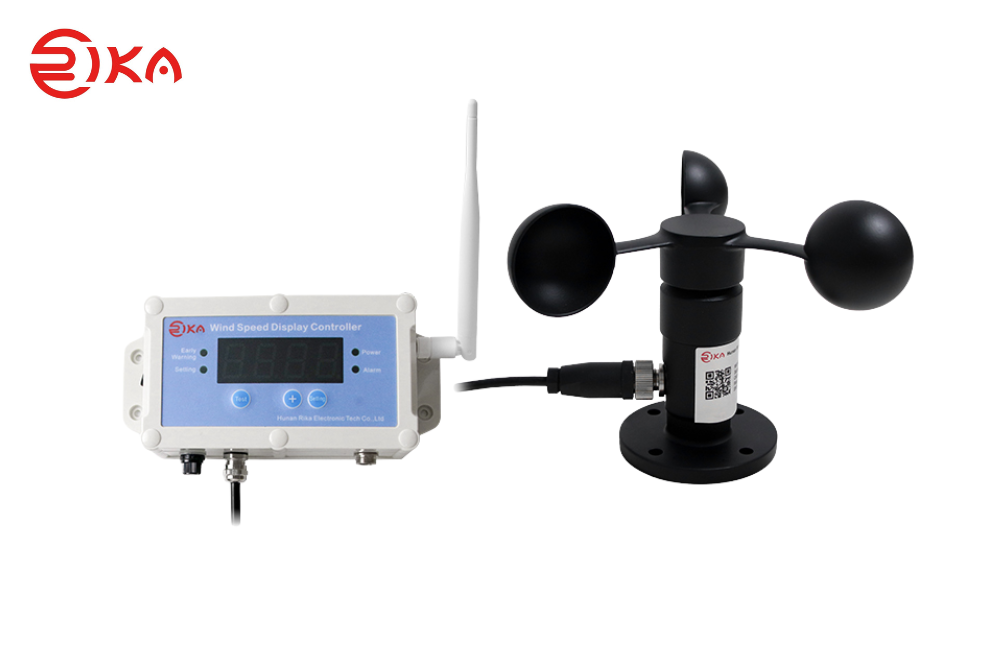

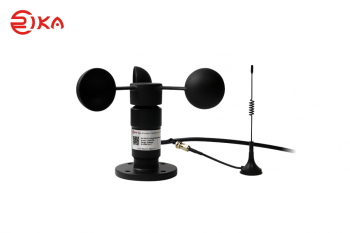

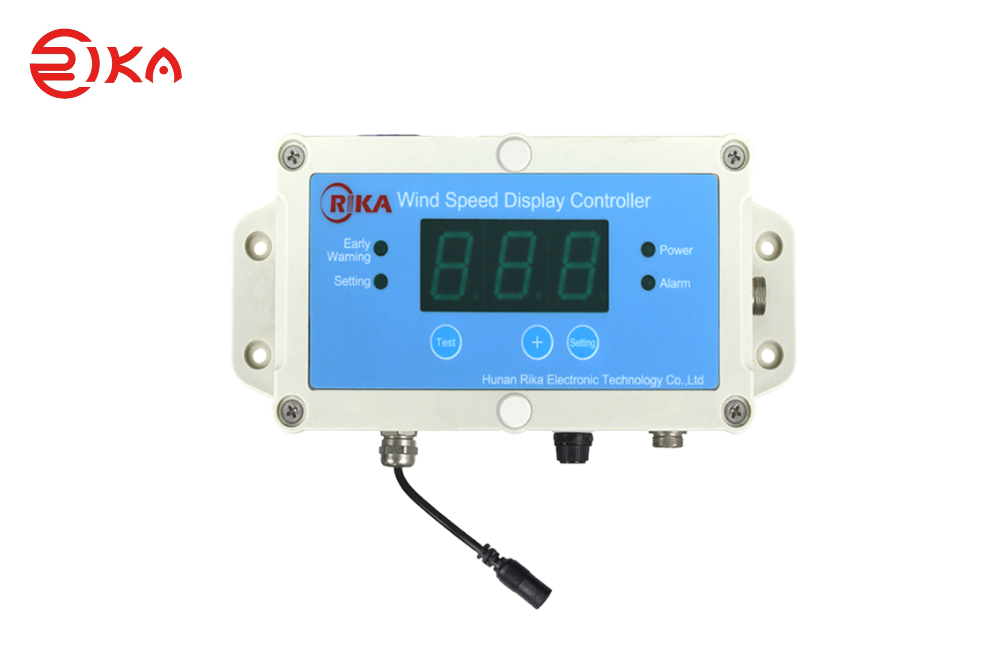

The RK150-01 wind speed display controller gives a visual indication of real-time wind speed , with a LED digital display. In its housing shell, build in a microprocessor with the function of high performance, low power consumption. The wind speed early warn value and alarm value can be set by buttons on the panel. When alarming, the signal output can be controlled by relay. RK150-01 is the companion to our RK100-01 Wind Speed Sensor

SPECIFICATIONS

Items	Specification
Range	0-60m/s	0-216km/h
Resolution(display)	0.1m/s	0.1km/h(<100km/h) 1km/h(≥100km/h)
Accuracy(sensor)	±1m/s
Alarm response time	<100mS
Type of alarm	Sound and light alarm
Contact capacity	5A@30VDC
Early warning	Any value within 1 m/s ~40 m/s, the early warning value must be lower than the alarm value	Any value within 1km/h ~99km/h, the early warning value must be lower than the alarm value
Alarm	Any value within 1 m/s~40 m/s	Any value within 1km/h ~144km/h
Operating Temperature	-30℃-+70℃
Power supply	AC100-240V/DC12V/DC24V
Power consumption	With wire:<3W(sensor & controller)
	Wireless:sensor: 0.25W,controller: 2.5W
Ingress Protection	Controller:IP54,wind speed sensor:IP65
Weight(unpacked)	Controller:315g,wind speed sensor:240g
Main material	Controller:ABS,wind speed sensor:Aluminum alloy & 304SS
Storage Condition	10℃-50℃@20%-90%RH

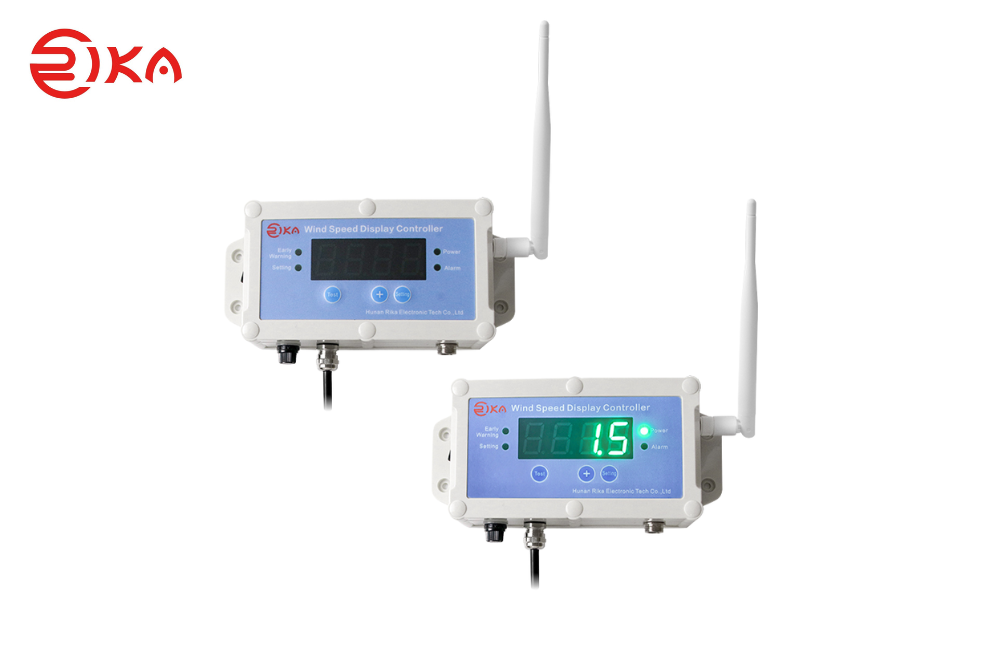

MOUNTING & WIRELESS(433MHZ) CONNECTION

RK150-01 Crane Wind Speed Sensor and Indicator 14

Four ø4.5mm mounting pole

RK150-01 Crane Wind Speed Sensor and Indicator 15
