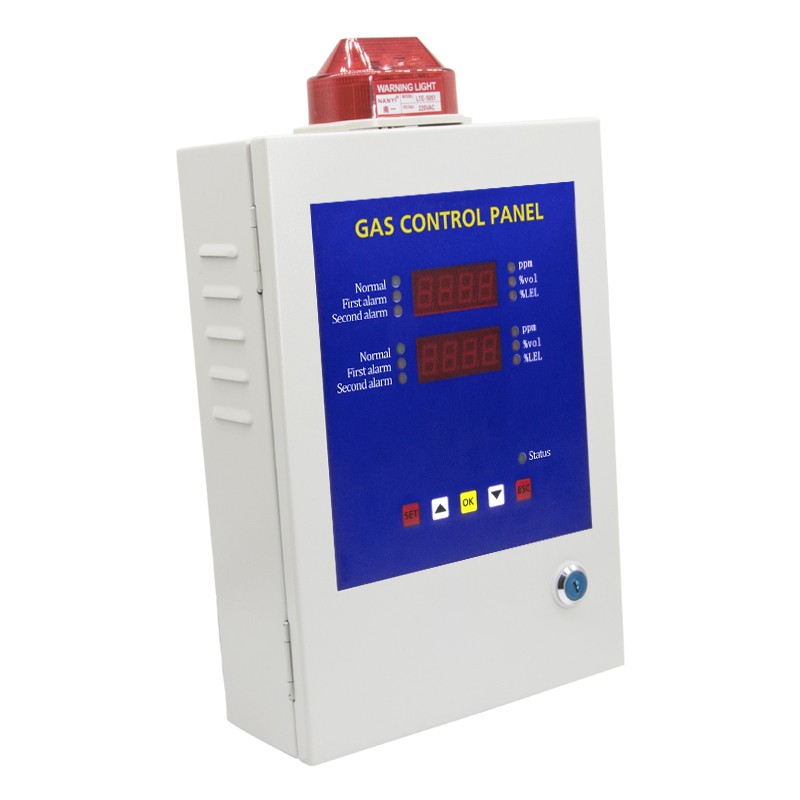

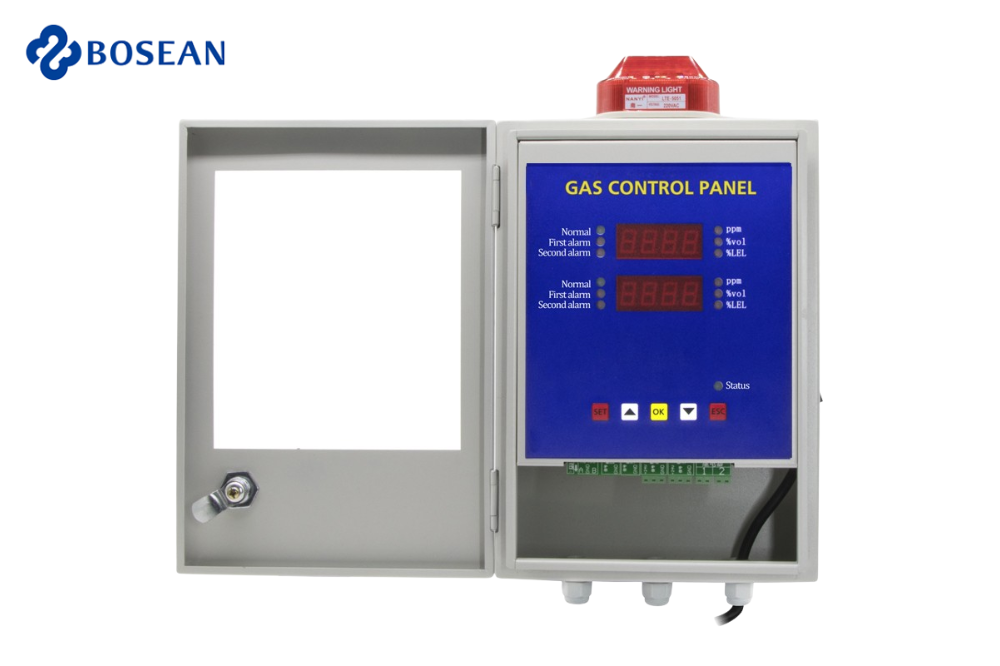

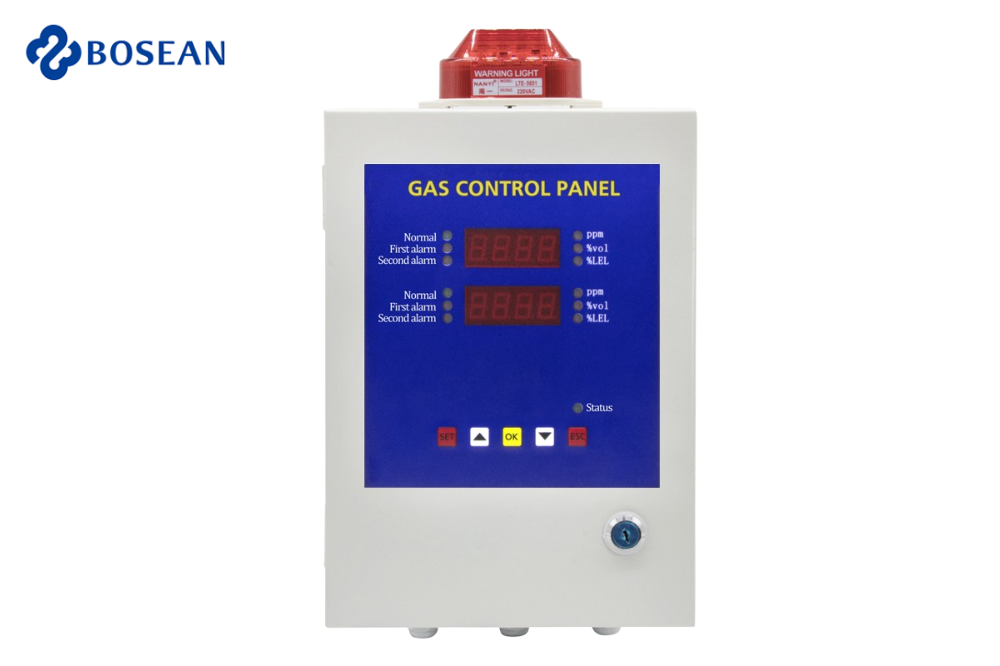

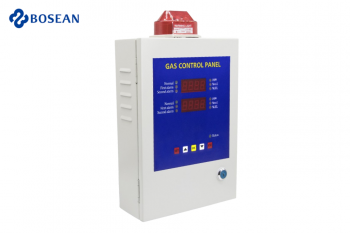

BH-50 Gas Control Panel - Two Channel

BH-50 Gas Monitor System is a multipoint controller system. It is used for detecting gas concentration in the air.

INTRODUCTION

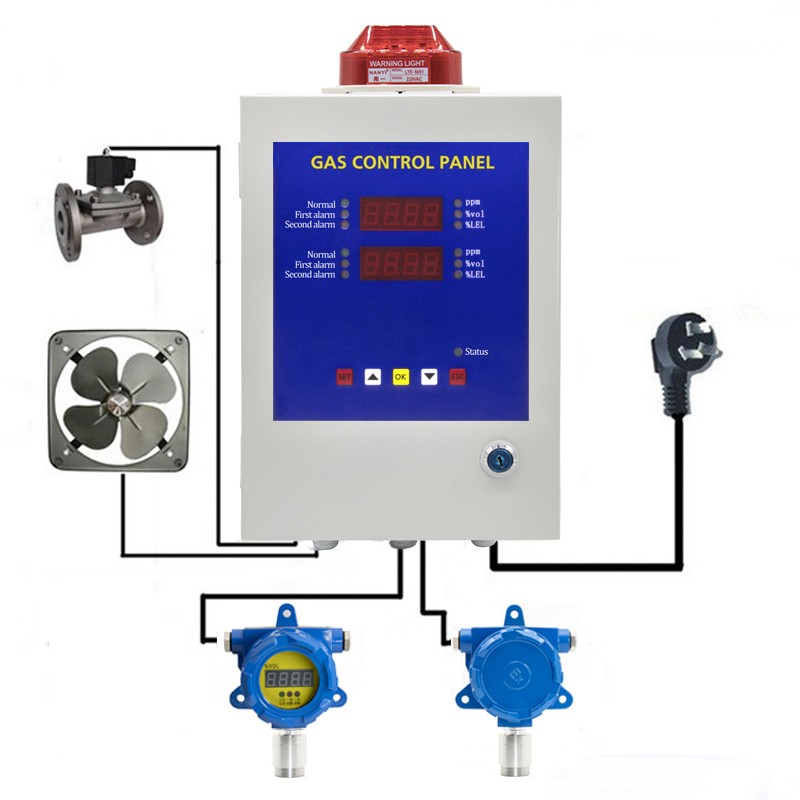

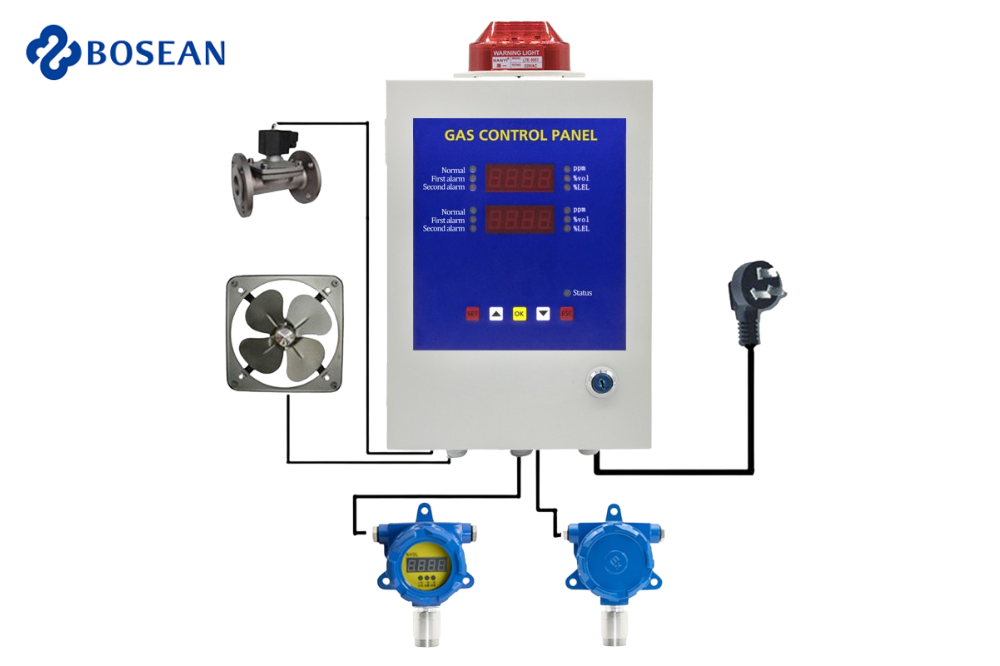

BH-50 Gas Monitor System is a multipoint controller system. It is used for detecting gas concentration in the air. The system could connect to detectors for different gases in the same time. The system adopts MCU as control unit, excellent gas sensor with high sensitivity and fast response. It will give visual and audible alarm when the gas concentration reach or exceed the presetting alarm level to remind you to take effective actions in time and it could also start the ventilation fan and other equipment to prevent from accident and explosions.

Product type	BH-50 Gas controller
Channel	Single channel,two channels,four channels
Power supply	AC220V±10% 50Hz
Consumption	≦10W
Signal input	4~20mA and RS485
Single output	two lines RS485（MODBUS）
Working temperature	-10℃～50℃
Working humidity	0-95%RH （no dew）
Contact output	Free contact output, max power 1kW
Installation method	Wall-mounted
Dimensions	380x210x80mm（L×W×H）

Note: Not all gases are listed, if the gas you need is not listed, please contact us.
